Xvive AT-1 Portable Audio Tester,Signal Generator, XLR Cable Tester, Phantom Power Checker, Input Level Meter & Headphone Monitor, Audio Tool for XLR Cable,PA/IEM System, Mixers, DI Box
4.3 (125 items)
Limited Time SaleUS$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211045692 | Release Date | 2026/04/04 | List Price | US$36.00 | Model Number | 211045692 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

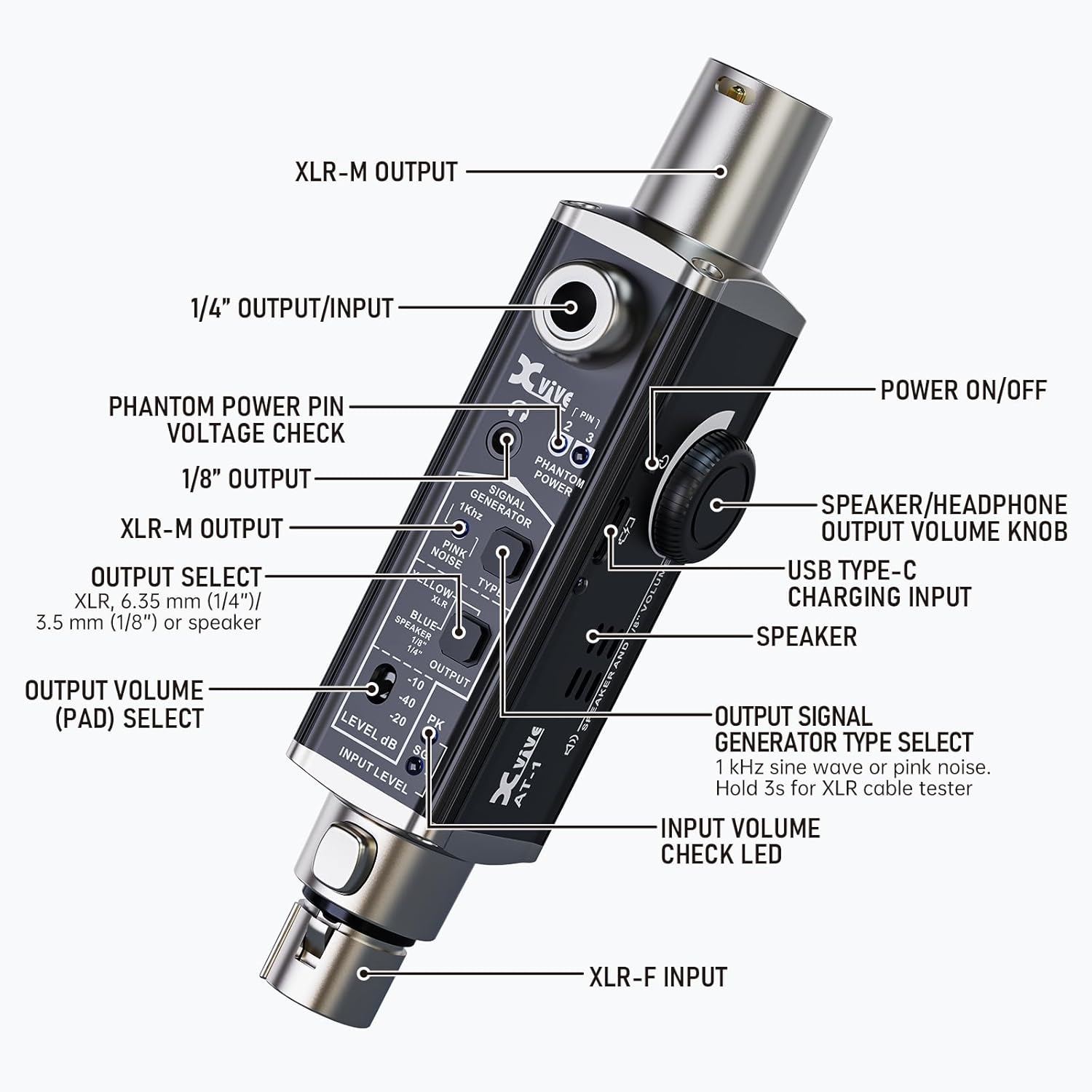

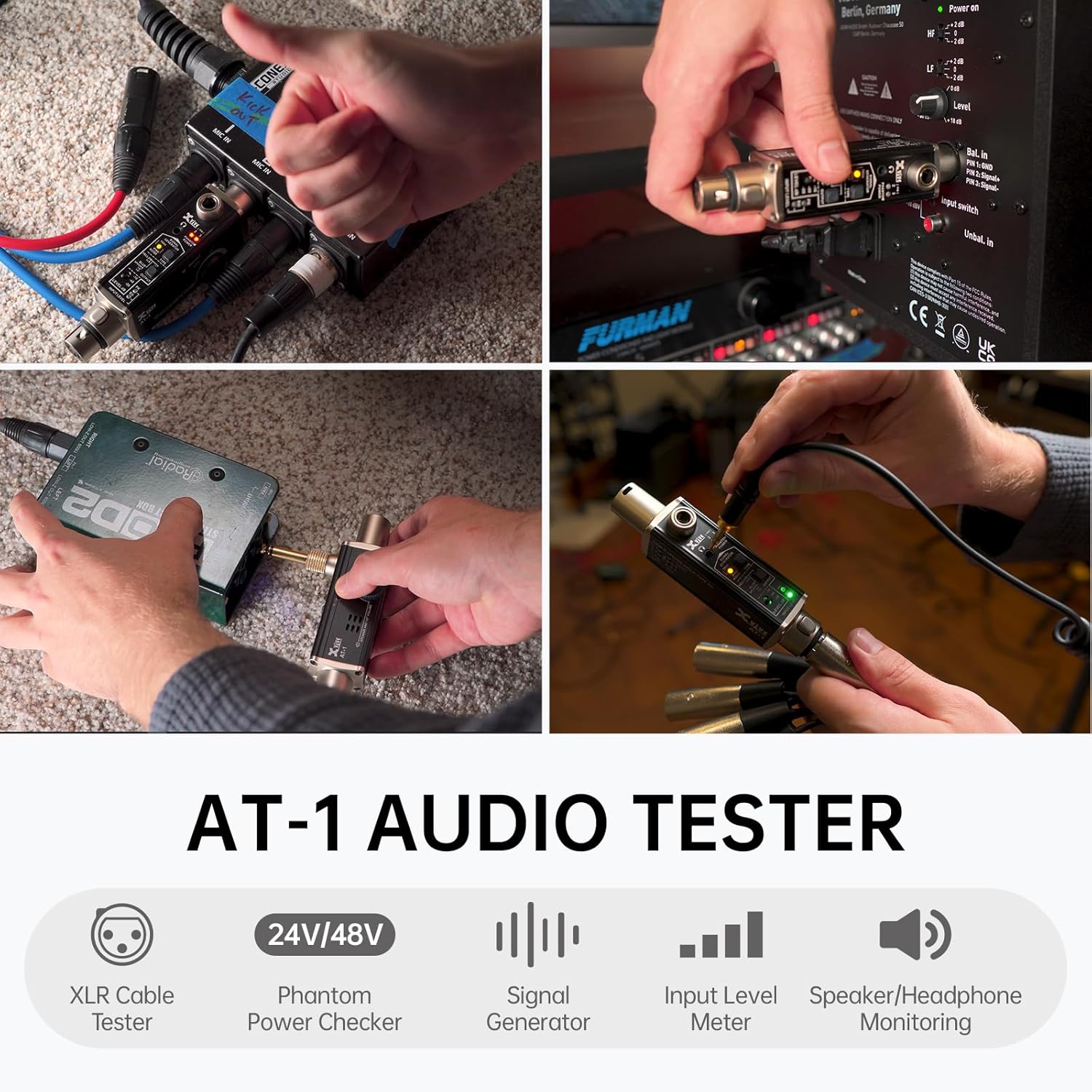

- Simplify Audio Troubleshooting: The AT-1 audio tester integrates a signal generator, XLR cable tester, phantom power checker, input level meter, and headphone/speaker monitoring into a single compact unit. Designed for live sound engineers and audio professionals, it’s perfect for testing and troubleshooting PA systems, mixers, DI boxes, and effects units.
- Signal Generator: The AT-1 tester produces a 1 kHz sine wave or pink noise, with outputs available via XLR, 6.35 mm (1/4"), or 3.5 mm(1/8") connectors. Output levels are adjustable (-10 dB, -20 dB, -40 dB),making it ideal for frequency response analysis and signal path diagnostics.
- XLR Cable Tester:Easily test XLR cables with automatic pin-by-pin diagnostics. Simply connect the cable and press the SEL button for 2 seconds to start testing. LED indicators will sequentially check each pin and highlight faults (e.g., open or short circuits on Pin 2 or Pin 3), enabling quick identification and resolution of cable issues.
- Phantom Power Checker: Verify phantom power voltage within a range of 24V to 52V using clear LED indicators: Solid LED: Voltage between 44V-52V (line OK). Flashing LED: Voltage between 24V-44V (line OK). This ensures your phantom-powered microphones and devices receive the correct voltage, preventing performance issues or equipment damage.
- USB-C Rechargeable: Compact and portable, the AT-1 features a USB-C charging port and a built-in rechargeable battery that fully charges in 1.5 hours. A low battery warning ensures uninterrupted operation, and the device supports use while charging.
| Color | Black |
|---|---|
| Model | AT-1 |
| Brand Name | Xvive |
| Style Name | AT-1 |
| Item Weight | 142 Grams |
| Manufacturer | Xvive |
| Item Dimensions | 5.2 x 1.14 x 1.57 inches |
