Vzense DS86/DS87 ToF 3D Depth Camera Series - Professional High-Precision RGBD Sensor Solutions (DS86)

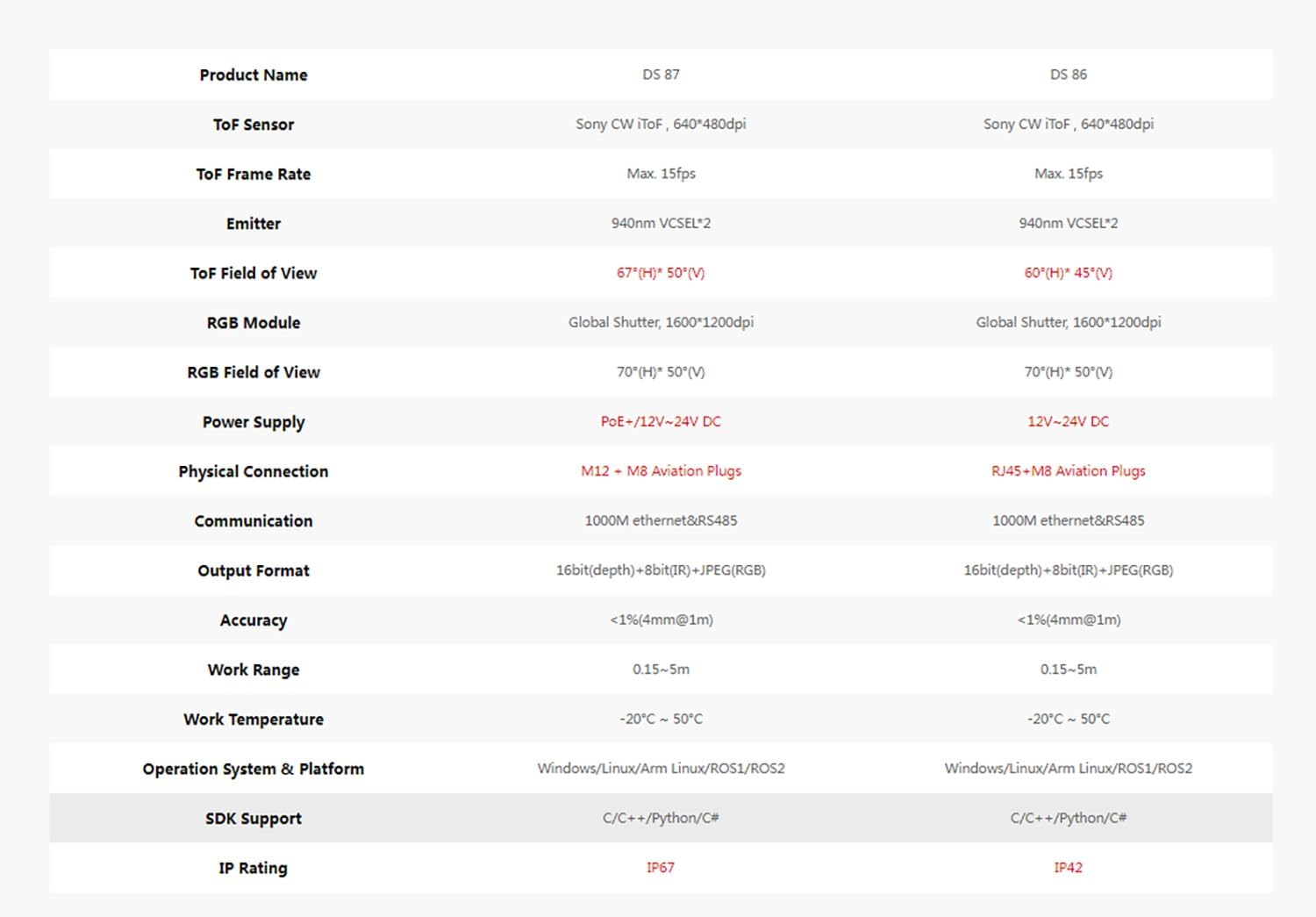

Product Series Overview The Vzense DS86 and DS87 are two high-performance 3D depth cameras based on Time-of-Flight (ToF) technology, specifically designed for industrial automation, robotic vision, and 3D measurement applications. While maintaining core functionality consistency, the two products meet different scenario requirements in terms of protection and power supply methods. Series Common Highlights Advanced ToF Technology: Depth resolution 640x480@15fps, measurement range 0.15-5 meters, accuracy error <1% Dual Sensor Configuration: Integrated 1600x1200 RGB sensor supporting RGBD fusion mapping Multiple Output Formats: 16-bit depth data + 8-bit IR image + JPEG color image Smart Trigger Modes: Hardware trigger (3.3-24V) and software trigger support for automation needs Professional SDK: ScepterSDK supporting C/C++/Python/C#/ROS1/ROS2 multi-platform development Detailed Product Comparison DS86 - Standard Industrial Edition Core Features Protection Rating: IP42 protection suitable for indoor industrial environments Power Supply: DC 9-26V power input Dimensions & Weight: 125×50×34.5mm, 256g lightweight design Connection Interfaces: RJ45 Ethernet port + M8 A CODE multi-functional interface Technical Advantages Optimized FOV: Depth sensor H-67°/V-50°, RGB sensor H-70°/V-50° HDR Mode: Supports up to 10fps high dynamic range imaging Data Filtering: Built-in hole filling, spatiotemporal filtering algorithms Temperature Adaptability: Operating temperature -20℃~50℃, storage temperature -30℃~70℃ DS87 - Enhanced Protection Edition Core Features Protection Rating: IP67 full protection, dustproof and waterproof for harsh environments Power Supply: Supports PoE+ (802.3at) and DC dual power supply Dimensions & Weight: 131.3×50×44.5mm, 326g robust structure Connection Interfaces: M12 X CODE Ethernet port + M8 A CODE interface Technical Advantages Industrial Durability: Passive cooling without fan ensures long-term stable operation Installation Flexibility: PoE power simplifies wiring, supports long-distance deployment Environmental Adaptability: Wide temperature design, 20-80% humidity range Application Scenarios Details Industrial Automation Component Inspection: High-precision 3D dimension measurement, defect recognition Robot Guidance: Real-time 3D environment perception, precise grasping positioning Quality Control: Production line product integrity inspection Logistics and Warehousing Volume Measurement: Automatic package size measurement, freight calculation Warehouse Management: Shelf inventory monitoring, space utilization optimization Sorting Systems: Object recognition and classification, automated sorting guidance Research and Development 3D Reconstruction: Object digitization modeling, reverse engineering SLAM Algorithms: Simultaneous localization and mapping research Human-Computer Interaction: Gesture recognition, motion tracking analysis Selection Recommendations Recommended DS86 Scenarios Indoor industrial environments without special waterproof/dustproof requirements Budget-sensitive applications requiring basic 3D vision functions Existing DC power systems without PoE requirement Recommended DS87 Scenarios Harsh industrial environments requiring IP67 protection Applications needing PoE power to simplify wiring Outdoor or high-humidity environment applications

• [High-Precision ToF Technology with Advanced 3D Sensing]:Utilizing Time-of-Flight principle with 640x480@15fps depth resolution, 0.15-5m measurement range, and <1% accuracy error. Features HDR mode for enhanced imaging in dynamic scenes with 940nm VCSEL illumination for stable performance.
• [Integrated RGBD Dual Sensors with Smart Mapping]:Built-in 1600x1200 RGB camera outputs 16-bit depth + 8-bit IR + JPEG color images simultaneously. Supports seamless RGBD fusion mapping for comprehensive environmental perception.
• [Industrial-Grade Durability and Flexible Installation]:DS87 offers IP67 rating (dust/waterproof) while DS86 provides IP42 protection. Compact dimensions (DS86: 125×50×34.5mm; DS87: 131.3×50×44.5mm) with passive cooling. Operates in -20℃~50℃ environments. DS87 supports PoE+ and DC dual power options.
• [Intelligent Triggering and Data Filtering]:Supports both hardware (3.3-24V compatible) and software trigger modes. Built-in filtering algorithms (hole filling, spatiotemporal filtering) ensure data accuracy. Configurable exposure up to 4000μs.
• [Complete Software Support and Plug-and-Play]:Provides ScepterSDK (supports C/C++/Python/C#/ROS) and ScepterGUITool. Default IP 192.168.1.101 with DHCP support. Includes all necessary accessories for immediate operation
