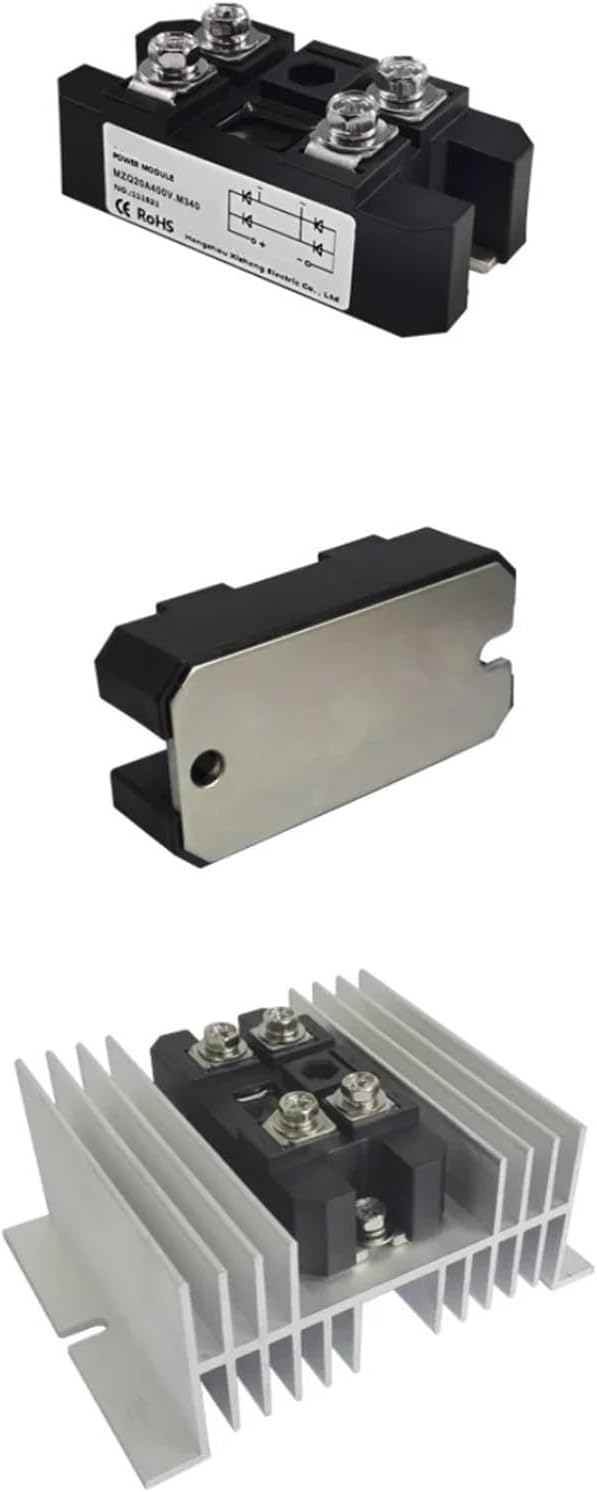

MZQ150A1000V MZQ100A Fast Recovery diode Rectifier Bridge Trr：200-300ns MZQ 10 20 30 50 75 100 150 Amp 1000V FRD for U-PS SMPS(MZQ10A1000V)
4.0 (22 items)
Limited Time SaleUS$22.33 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211048122 | Release Date | 2026/04/04 | List Price | US$14.89 | Model Number | 211048122 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
DiodesMZQ750A1000V Fast recovery diode rectifier bridge Trr:200-300ns MZQ 10 20 30 50 75 100 150 Amp 1000V FRD For U-PS SMPSreminder1. About product selectionThe marked current of the power module is the average value of the on state, not the actual effective value of long-term operation. When selecting, sufficient margin should be left based on the actual working environment and conditions.(1) Pure resistive load 2-2.5 times margin: actual current (A) × 2 (~2.5)=Module nominal current (A) (2) Inductive load 6-7 Signal margin: Actual current (A) × 6 (~7)=Module nominal current (A)2. Radiator configurationWhen the actual working current of the device is greater than 5A, please be sure to configure a suitable heat sink for use3. Regarding the of goodsThe voltages of the Fast Recovery Single Phase Rectifier Bridge (MZQ) products are 400V, 600V, and 1000V. If you need the other two voltage specifications, the store also has their link, and you can find and order them at this store. Thank you.The MZQ 400V series can be used in power circuits below 20KHZ.The MZQ 600V and 1000V series can be used in power circuits below 10KHZ.
- Diodes
| Item Weight | 2.01 ounces |
|---|---|
| Manufacturer | сYKKxBKGM |
| Item model number | сYKKxBKGM |
| Batteries required | No |
| Package Dimensions | 1.18 x 0.79 x 0.39 inches |
